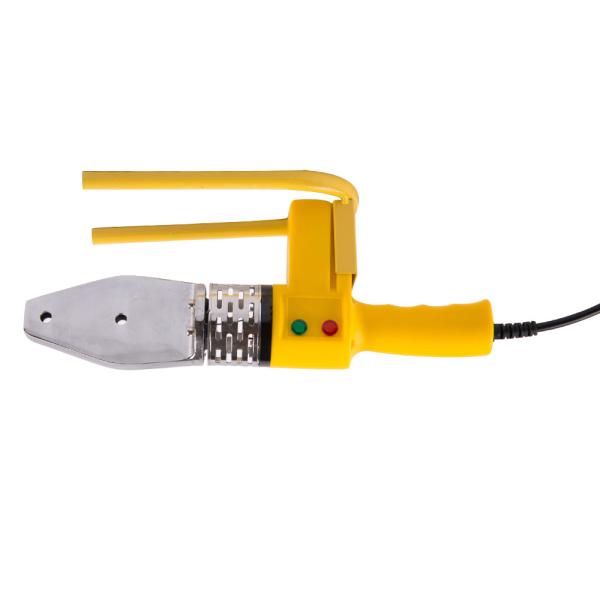

China factory HT32-9 plastic pipe welding machine for Manufacturing
Description
The raw material of the machine frame is aluminum, it is light but strong, is one of the best material for machine. Digital series add a digital controller and screen for improving the accuracy of the heating temperature. The temperature range can set as demand of different plastic pipes & Removable PTFE coated heater with separate temperature control system, the temperature can be controlled to a minimum range.Thicken/Double layer Teflon coatings makes it working better when welding the plastic pipe and fittings
Feature
Digital series add a digital controller and screen for improving the accuracy of the heating temperature. The temperature range can set as demand of different plastic pipes & fittings, required fusing temperature can fix and display on the screen, environment temperature will be adjusted and updated automatically, over-temperature will be alarmed automatically and etc. This provides a more excellent fusing result.Black gold die head, not easy to stick to the tube.
Dual temperature and dual control can speed efficiency.
U-shaped bracket, enhanced load-bearing effect, stable work.
The front-end independent die head easily solves the corner takeover.
| Item no. | Welding range | Rated Power | Working temp. | G.W./N.W. | Packaging |
| HT32-2 | 20-32 mm | 800W | 0-300° | 10pcs,22/21 KGS | 38*34.5*45cm |
| HT32-TT | 20-32 mm | 800W | 0-300° | 10pcs,22/21 KGS | 38*34.5*45cm |
| HT63-11 | 20-32 mm | 800W | 0-300° | 10pcs,28/27 KGS | 40*39*45cm |
| HT63-3 | 20-63 mm | 800W | 0-300° | 10pcs,31/30 KGS | 40*36*45cm |
| HT63-3A | 20-63 mm | 800W | 0-300° | 10pcs,31/30 KGS | 40*36*45cm |
| HT63-12 | 20-63 mm | 1500W | 0-300° | 5pcs,23/22 KGS | 48.5*29*55.5cm |
| HT63-7 | 20-63 mm | 800W | 0-300° | 10pcs,30/29 KGS | 41*40.5*48.5cm |
| HT63-10 | 20-63 mm | 800W | 0-300° | 5pcs,27/26 KGS | 46.5*29/52cm |
| HT110 | 75-110 mm | 1200W | 0-300° | 5pcs,25/24 KGS | 56.5*43.5*31cm |
| HT110-10 | 75-110 mm | 1200W | 0-300° | 5pcs,31/30 KGS | 46.5*33.5*38cm |
| HT110-6 | 75-110 mm | 750-1500W | 0-300° | 5pcs,31/30 KGS | 46.5*29.5*52cm |
ppr welding machine Instruction for use
1. Apply die head
Place the welding machine on the stander, chose die head according to pipe’s diameter, and fix it on the machine. In regular, the small end is at the front, the bigger end at the back.
2. Power on
Power on (make sure the power should be with leakage current protector) , the green light and the red light on, wait till the red light off and keep greenlight on, which indicates the machine enter into auto temperature control mode and the machine can be used.The normal box is 0.5mm thick and can carve your logo on the surface, you can choose the color of box as your like by free of charge
FAQ
Q1: Why choose us?
We are a professional manufacturer of pipe hot melt welding machine and pipe scissors.
Q2: Do you provide samples?
Yes, we could offer the sample for free of charge but freight is not included.
Q3:How long is your delivery time?
Generally it’s 3-7days if the goods are in stock, or it’s 25-30days if the goods are not in stock, and it vary a little according to quantity.
Q4: What is your terms of payment?
A: Payment under USD1,000, 100% T/T in advance.
B: Payment more than USD1,000, 30% T/T in advance, balance before shipment.
Q5: What is your packing?
A: usually by carton, and can be packed as your require.
